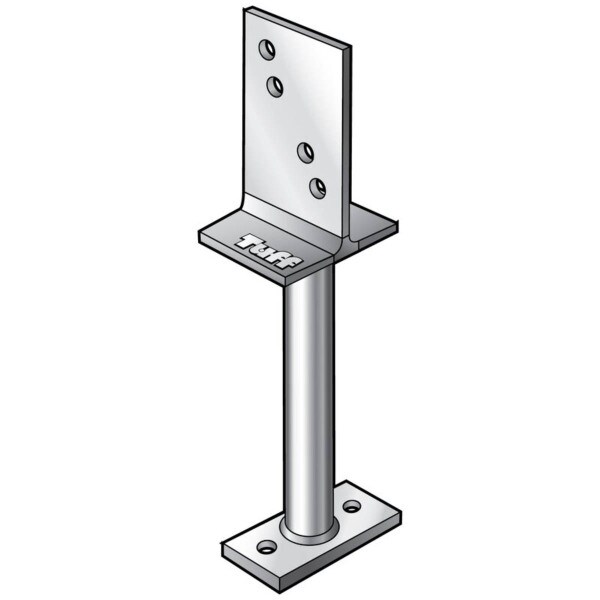

T Blade Stirrup 600 x 115 HDG
Details
The Tuff T-Blade stirrup is an ideal mounting solution for pergolas, carports and verandah posts. They can be used for bolting to existing timber decking or concrete bases as well as setting into concrete. The T-Blade stirrups are also termite resistant and made with a heavy-duty extra-weight bearing shaft that makes it ideal for use in cyclonic areas.
Specifications:
- Post Size: Up to 115mm
- Blade Size: 100mm (W) X 250mm (H)
- Shaft Height: 580mm
- Shaft Diameter: 48mm
- Post Bolt Hole: M16 / Base Bolt Hole: Ø14mm
- Made From: Steel, Blade (10mm) + Base (5mm)
- Finishing: Hot-Dip Galvanised
