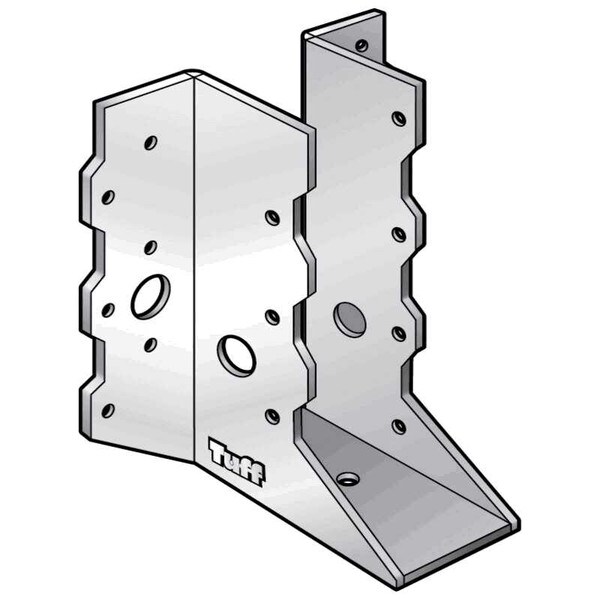

Joist Hanger 45 x 120

SKU: JOIH45120

Joist Hanger 45 X 120


Tuff Joist Support

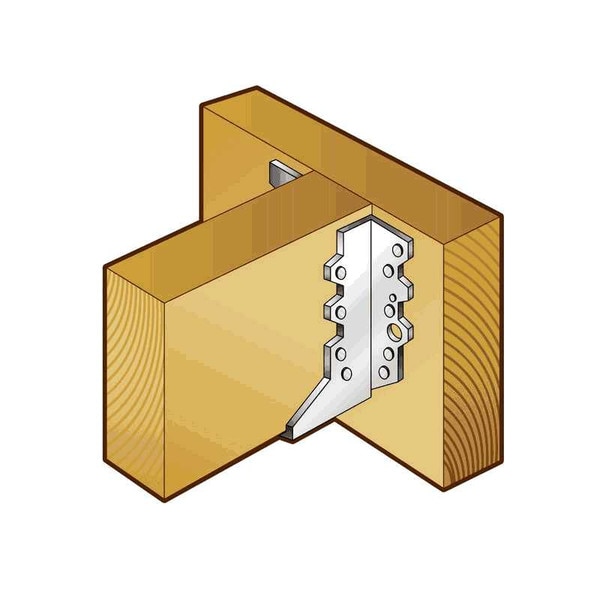

  • Used for timber beam to beam joints
  • The wide range (and sizes) of these brackets provides for all common sized timbers and for laminated timber beams
  • The joist supports are strong, well designed, cost effective and easy to install
  • Nailed to both the supporting beam and the supported beam with the joist support having wide flanges for ease of nailing



Dimension: 120mm X 45mm
Bolt Hole: 12.8mm (Large) + 3.4mm (Small)
Made From: 1mm Galvanised Steel
Grade: G300 Z275
