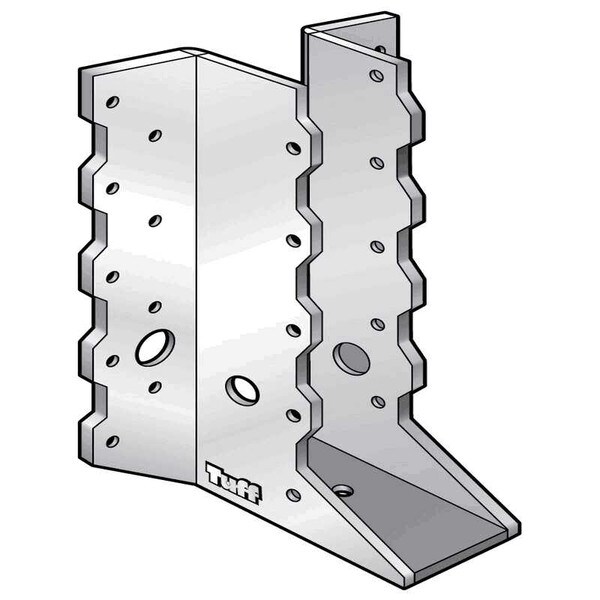

Tuff Joist Support

Features:

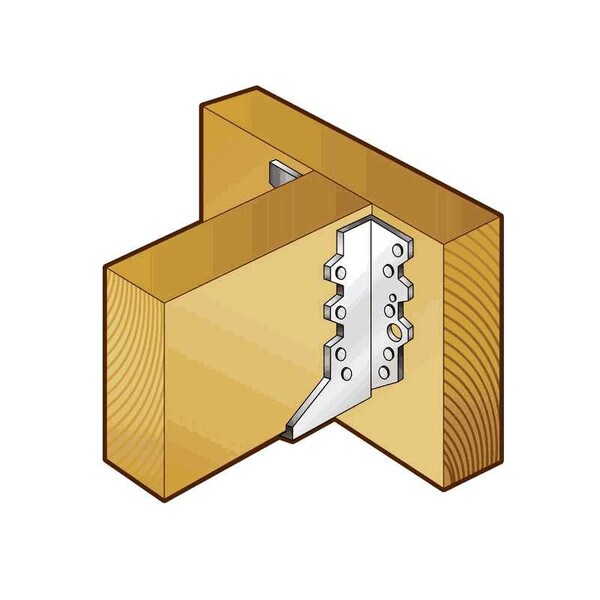

• Used for timber beam to beam joints
• The wide range (and sizes) of these brackets provides for all common sized timbers and for laminated timber beams
• The joist supports are strong, well designed, cost effective and easy to install
• Nailed to both the supporting beam and the supported beam with the joist support having wide flanges for ease of nailing

Specifications:

Dimension: 180mm X 38mm
Bolt Hole: 12.8mm (Large) + 3.4mm (Small)
Made From: 1mm Galvanised Steel
Grade: G300 Z275
