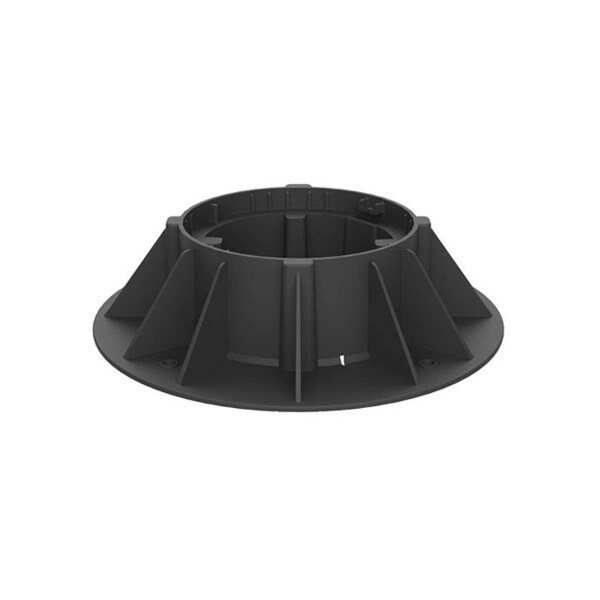

The DuoLift® Foot provides a very stable footing for more elevated subframes, raising the height by 45mm and spreading the load further across the substrate, due to the 220mm base supporting a maximum combined height of 350mm.
The DuoLift joist pedestal system is designed to make installation significantly easier, providing substantial height flexibility within four stackable components. DuoLift removes the common problem of having to order varying-height pedestals for a single area.
- Height-adjustable from a low 15mm profile with a huge adjustment range of 45mm.
- Strong construction for improved spans and fewer cradles are required.
- For use with H3 or H4 Treated Pine Joists or Hardwood up to 68mm Wide and compatible with LOWDECK Joists or Millboard’s Aluminum DuoSpan Joists.
- DuoLift offers a perfect solution for installations on concrete slabs, rooftops, balconies and over waterproof membranes.
The Duolift Joist Cradle can be used by itself for Ultra Low Height installs or optionally extended with the modular accessories to achieve self-leveling functionality and additional height ranges up to 350mm.
